Analog-Intensive 8051 MCU - C8051F04x

C8051F04x Analog-Intensive MCUs

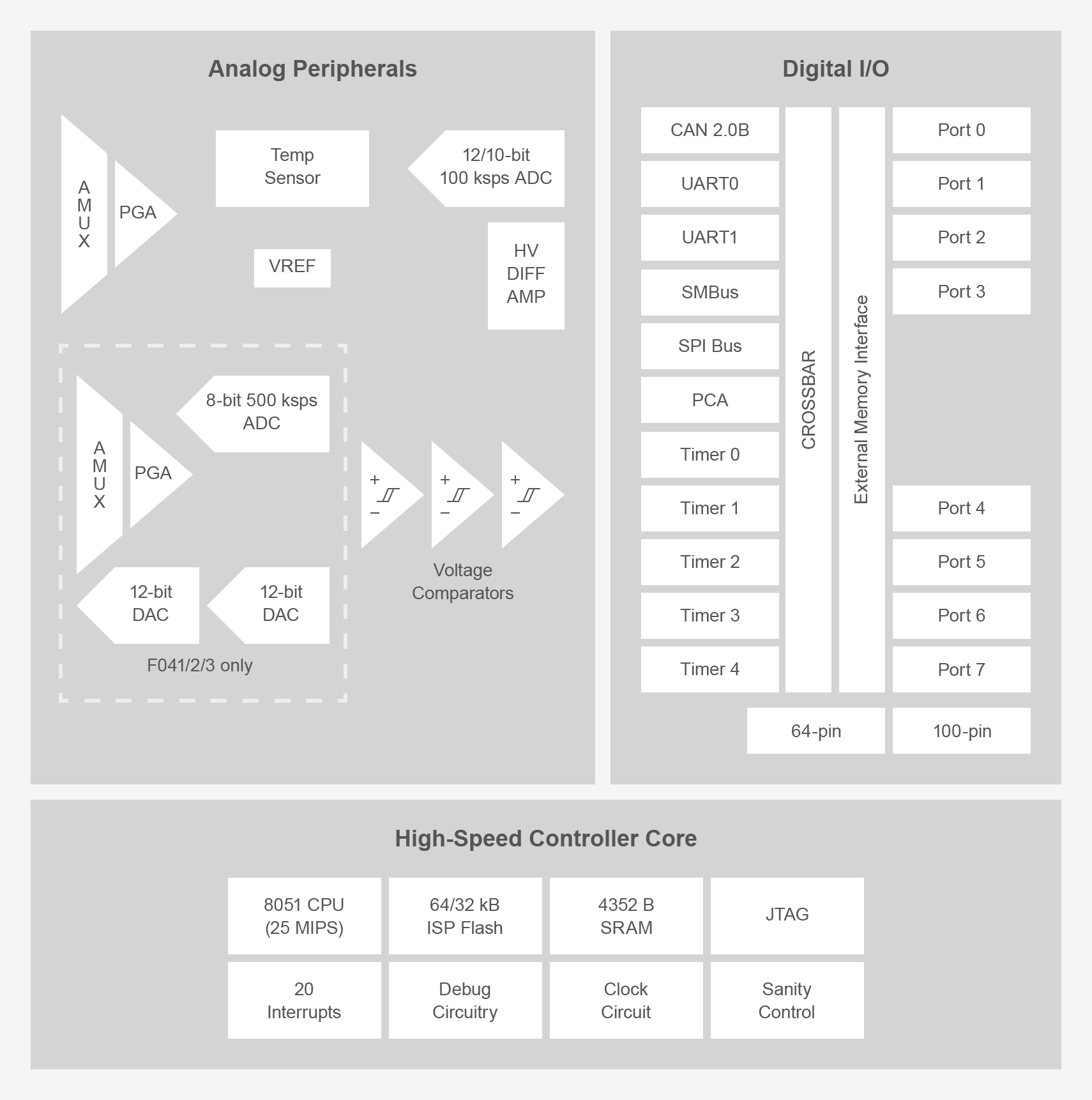

The C8051F04x highly integrated mixed-signal 8-bit microcontroller (MCU) devices feature two separate high speed ADC sub-systems (either 10/12-bit, 100 ksps or 8-bit, 500 ksps). These analog-intensive microcontrollers also include two separate 12-bit DACs and a ± 60 V PGA (programmable gain amplifier).

With on-chip VDD monitor, Watchdog Timer, and a clock oscillator, the C8051F04x family of devices are truly stand-alone System-on-a-Chip solutions. All analog and digital peripherals are enabled/disabled and configured by user firmware. The Flash memory can be reprogrammed even in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware.

C8051F04x Common Specs

25 MIPS 8051 CPU
64 kB or 32 kB Flash memory
4352 B RAM

12-bit or 10-bit ADC with up to 100 ksps
8-bit ADC up to 500 ksps
±60 V common-mode DIFF amp /(F04x)

Two 12-bit DACs
64 Digitial I/O
CAN 2.0 B controller with 32 message objects

Show More Show Less

Part Number

MCU Core

MHz

Flash (kB)

RAM (kB)

Dig I/O Pins

5 Volt Tolerant

ADC 1

USB

Temp Sensor

Timers (16-bit)

PCA Channels

ADC 2

DAC

Comparators

UART

SPI

I2C

HS I2C Slave

I2S

EMIF

CAN

LIN

AES

AEC-Q100

Vdd (min)

Vdd (max)

Package Type

Package Size (mm)

Internal Osc.

VREF

Debug Interface

Other

C8051F040

(NRND) Buy Sample

8051

4.25

12-bit, 13-ch., 100 ksps

8-bit, 8-ch., 500 ksps

12-bit, 2-ch.

2.7

3.6

QFP100

14x14

±2

JTAG

±60 V PGA

C8051F041

(NRND) Buy

8051

4.25

12-bit, 13-ch., 100 ksps

8-bit, 8-ch., 500 ksps

12-bit, 2-ch.

2.7

3.6

QFP64

10x10

±2

JTAG

±60 V PGA

C8051F042

(NRND) Buy

8051

4.25

10-bit, 13-ch., 100 ksps

8-bit, 8-ch., 500 ksps

12-bit, 2-ch.

2.7

3.6

QFP100

14x14

±2

JTAG

±60 V PGA

C8051F043

(NRND) Buy

8051

4.25

10-bit, 13-ch., 100 ksps

8-bit, 8-ch., 500 ksps

12-bit, 2-ch.

2.7

3.6

QFP64

10x10

±2

JTAG

±60 V PGA

C8051F044

(NRND) Buy

8051

4.25

10-bit, 13-ch., 100 ksps

—

2.7

3.6

QFP100

14x14

±2

JTAG

±60 V PGA

C8051F045

(NRND) Buy

8051

4.25

10-bit, 13-ch., 100 ksps

—

2.7

3.6

QFP64

10x10

±2

JTAG

±60 V PGA

C8051F046

(NRND) Buy

8051

4.25

10-bit, 13-ch., 100 ksps

—

2.7

3.6

QFP100

14x14

±2

JTAG

±60 V PGA

C8051F047

(NRND) Buy

8051

4.25

10-bit, 13-ch., 100 ksps

—

2.7

3.6

QFP64

10x10

±2

JTAG

±60 V PGA

Part Number	MCU Core	MHz	Flash (kB)	RAM (kB)	Dig I/O Pins	ADC 1	Timers (16-bit)	PCA Channels	ADC 2	DAC	Comparators	UART	SPI	I2C	EMIF	CAN	Vdd (min)	Vdd (max)	Package Type	Package Size (mm)	Internal Osc.	Debug Interface	Other
C8051F040 (NRND) Buy Sample	8051	25	64	4.25	64	12-bit, 13-ch., 100 ksps	5	6	8-bit, 8-ch., 500 ksps	12-bit, 2-ch.	3	2	1	1	1	1	2.7	3.6	QFP100	14x14	±2	JTAG	±60 V PGA
C8051F041 (NRND) Buy	8051	25	64	4.25	32	12-bit, 13-ch., 100 ksps	5	6	8-bit, 8-ch., 500 ksps	12-bit, 2-ch.	3	2	1	1	1	1	2.7	3.6	QFP64	10x10	±2	JTAG	±60 V PGA
C8051F042 (NRND) Buy	8051	25	64	4.25	64	10-bit, 13-ch., 100 ksps	5	6	8-bit, 8-ch., 500 ksps	12-bit, 2-ch.	3	2	1	1	1	1	2.7	3.6	QFP100	14x14	±2	JTAG	±60 V PGA
C8051F043 (NRND) Buy	8051	25	64	4.25	32	10-bit, 13-ch., 100 ksps	5	6	8-bit, 8-ch., 500 ksps	12-bit, 2-ch.	3	2	1	1	1	1	2.7	3.6	QFP64	10x10	±2	JTAG	±60 V PGA
C8051F044 (NRND) Buy	8051	25	64	4.25	64	10-bit, 13-ch., 100 ksps	5	6	—	—	3	2	1	1	1	1	2.7	3.6	QFP100	14x14	±2	JTAG	±60 V PGA
C8051F045 (NRND) Buy	8051	25	64	4.25	32	10-bit, 13-ch., 100 ksps	5	6	—	—	3	2	1	1	1	1	2.7	3.6	QFP64	10x10	±2	JTAG	±60 V PGA
C8051F046 (NRND) Buy	8051	25	32	4.25	64	10-bit, 13-ch., 100 ksps	5	6	—	—	3	2	1	1	1	1	2.7	3.6	QFP100	14x14	±2	JTAG	±60 V PGA
C8051F047 (NRND) Buy	8051	25	32	4.25	32	10-bit, 13-ch., 100 ksps	5	6	—	—	3	2	1	1	1	1	2.7	3.6	QFP64	10x10	±2	JTAG	±60 V PGA
