Not Recommended for New Designs: This part is Not Recommended for New Designs (NRND).

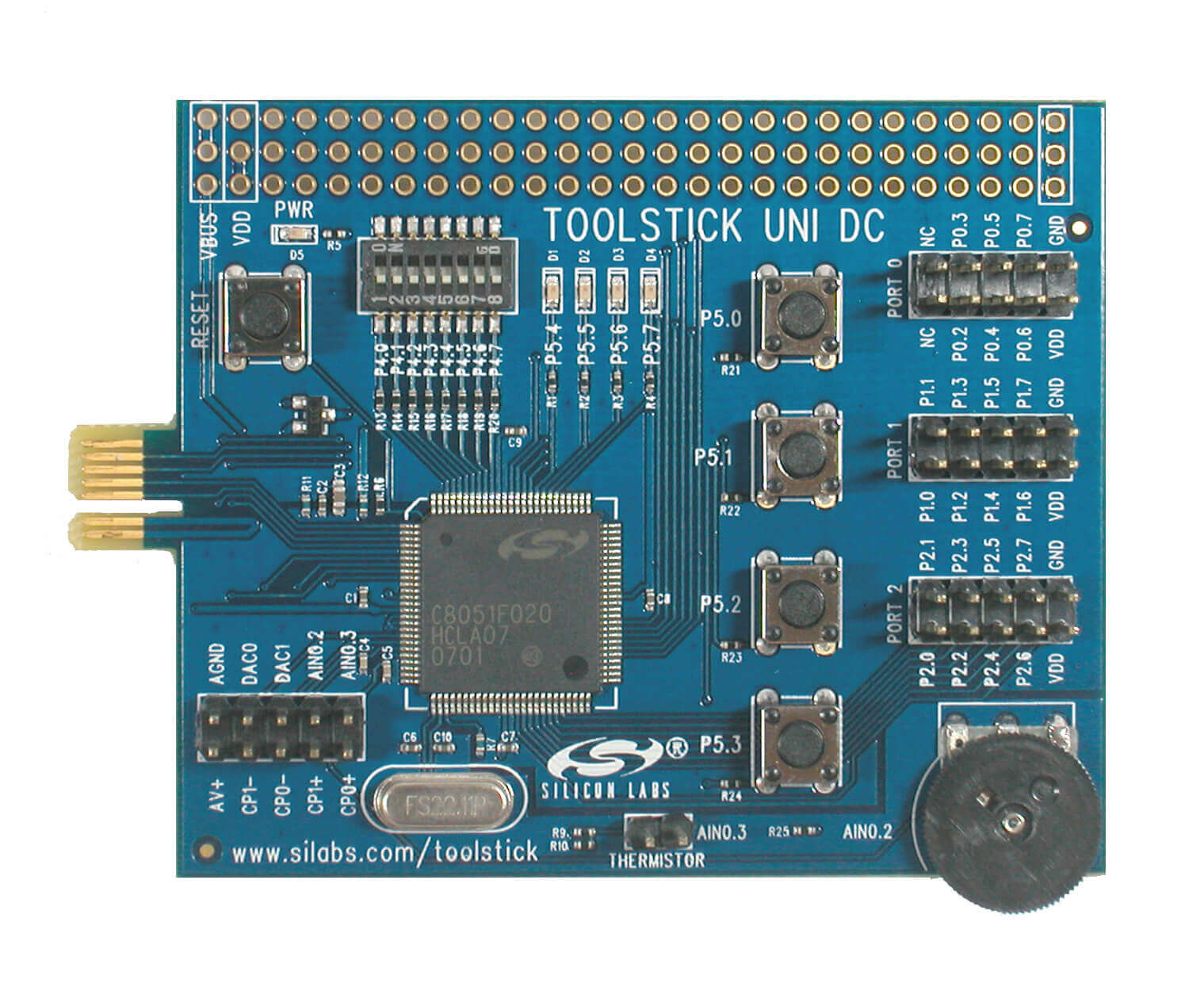

Device/Module image

C8051F021

C8051F02x Analog-Intensive MCUs

The C8051F021 is a highly integrated mixed-signal 8-bit microcontroller (MCU) featuring a powerful 8051 core with 25 MHz performance. This analog-intensive MCU features a 12-bit, 8-ch., 100 ksps ADC, a 12-bit, 2-ch. DAC, and 2 comparators. The C8051F021 also offers 64 kB Flash, 4.25 kB RAM along with additional communication interfaces and 5 x 16-bit timers in a 10x10 mm, QFP64. With on-chip VDD monitor, Watchdog timer, a ±20 internal oscillator, and high analog integration, the C8051F021 MCU is a truly stand-alone system-on-chip solution, making it ideal for applications such as portable medical equipment, weigh scales, test equipment, and fiber optic systems among others.



Key Specs


MCU Core
8051
MHz
25
Flash (kB)
64
RAM (kB)
4.25
EMIF
1
I2C
1
SPI
1
UART
2
Dig I/O Pins
32
ADC
12-bit, 8-ch., 100 ksps
DAC
12-bit, 2-ch.
Comparators
2
PCA Channels
5
Timers (16-bit)
5
Package Type
QFP64
Package Size (mm)
10x10
MCU Core
8051
MHz
25
Flash (kB)
64
RAM (kB)
4.25
EMIF
1
I2C
1
SPI
1
UART
2
Dig I/O Pins
32
ADC
12-bit, 8-ch., 100 ksps
DAC
12-bit, 2-ch.
Comparators
2
PCA Channels
5
Timers (16-bit)
5
Package Type
QFP64
Package Size (mm)
10x10
