Not Recommended for New Designs: This part is Not Recommended for New Designs (NRND).

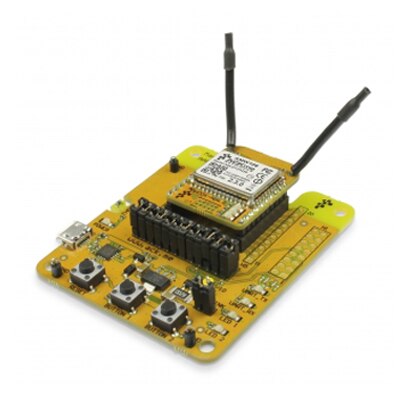

Device/Module image

AMW006

Ultra-low power Wi-Fi networking module for battery powered applications

The AMW006 module, is an ultra-low power Wi-Fi networking module with full regulatory certification. Featuring a low-power MCU, it is designed for battery operated applications requiring moderate data throughput in any volume. The module runs an embedded TCP/IP networking stack & webserver with RESTful API/websockets and SSL/TLS/HTTPS security, and offers RF pads allowing for maximum antenna flexibility. AMW006 ships with a licensed version of ZentriOS which is the connectivity operating system of choice for resource constrained Internet of Things (IoT) devices. ZentriOS accelerates time-to-market by providing a common software foundation across multiple product lines. The OS provides integrated security, sophisticated network connectivity features, file management, rich peripheral interfaces, and much more. By abstracting the underlying complexity of connectivity, developers can focus on what they do best – build great products.


Key Specs


Integrated MCU
Yes
Flash (kB)
1024
RAM (kB)
96
Host Interface
UART, SPI
Dimensions (mm)
20.3x15.2x 2.7
TX Power
18
RX Sensitivity
-94
Integrated MCU
Yes
Flash (kB)
1024
RAM (kB)
96
Host Interface
UART, SPI
Dimensions (mm)
20.3x15.2x 2.7
TX Power
18
RX Sensitivity
-94
Zentri Legacy Modules Block Diagram
