Low Power ARM Microcontroller - SiM3L1xx

SiM3L1xx Low Power MCUs

Silicon Labs’ ultra-low-power Precision32™ SiM3L1xx 32-bit microcontrollers (MCUs) feature significant peripheral and architectural innovations, including an integrated dc-dc converter that helps save power in active mode as well as a redesigned LCD controller that can reduce the power consumed by the LCD display.

Autonomous peripherals off-load the 50 MHz ARM® Cortex®-M3 CPU and further decrease processing time and power. Full RAM and state retention enable instantaneous code execution after waking up from sleep. Flash memory sizes range from 32 to 256 kB, and the MCUs come in packages as small as 5.5 mm x 5.5 mm. Enhanced Precision32 tools can simplify the development process by estimating power consumption and providing configuration guidance to achieve the lowest power.

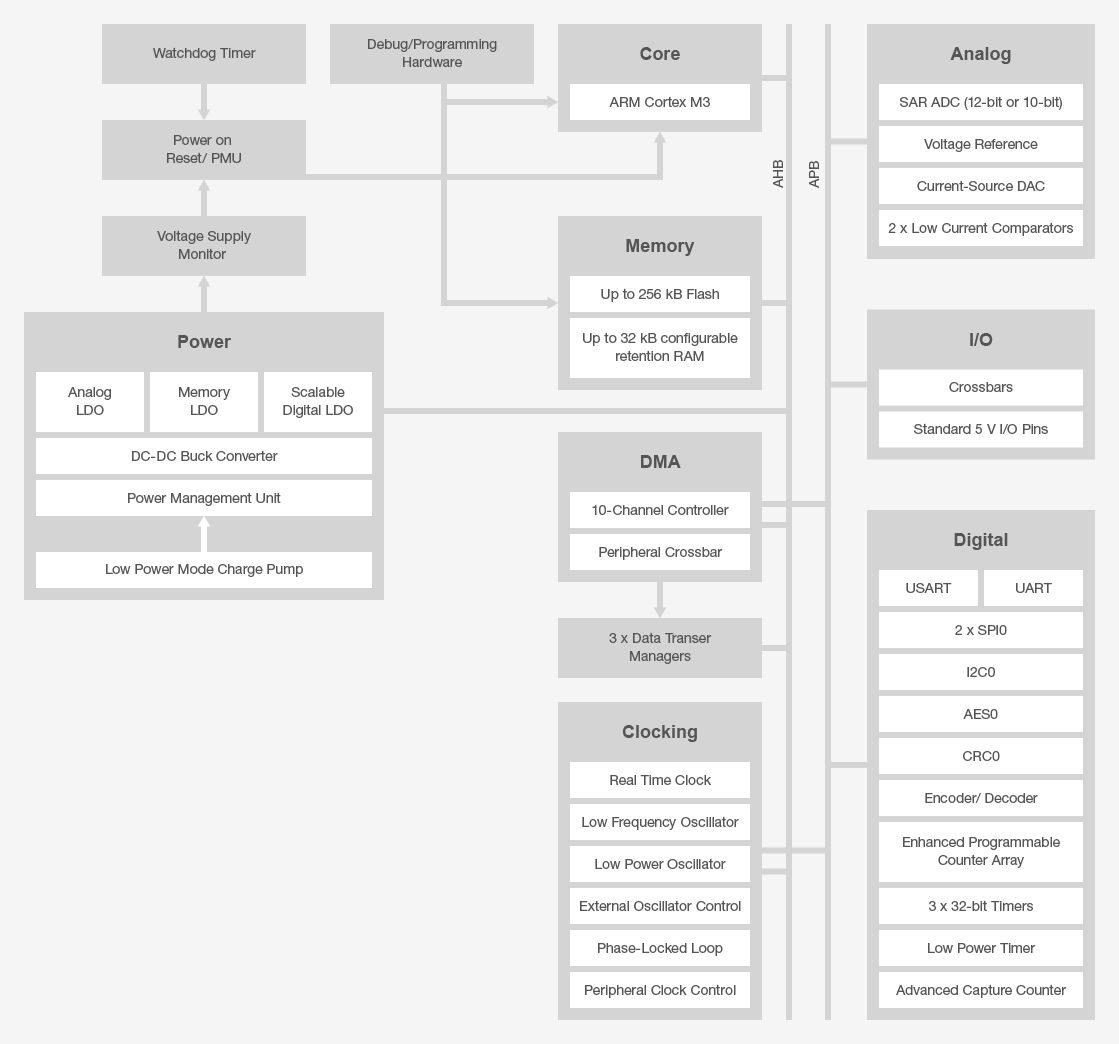

SiM3L1xx Common Specs

Up to 256 kB flash
Up to 32 kB RAM
Up to 62 GPIOs
50 MHz Cortex-M3 core
Integrated dc-dc converter
Variety of wake sources

128 or 160 segment LCD controller
Sensor interface
Hardware AES, CRC, encode/decode
Enhanced DMA with DTM
10-bit 1 Msps or 12-bit 250 ksps ADC
Current mode DAC

2 x SPI, UART and I²C
Analog comparators
Enhanced PCA, timers
Voltage reference and temperature sensor
Available in 40, 64, 80-pin packages

Show More Show Less

Part Number

MHz

Flash

RAM

Dig I/O Pins

5 Volt Tolerant

ADC 1

DAC

USB

Cap Sense

LCD

Temp Sensor

Timers (16-bit)

AES-128

AES-256

ECC

SHA-1

SHA-2

RSA-2048

UART

USART

SPI

I2C

I2S

EMIF

RTC

Comparators

Vdd (min)

Vdd (max)

Package Type

Package Size (mm)

Internal Osc.

Debug Interface

SiM3L134-C-GM

(EOL) Buy Dev Kit

12-bit, 20-ch., 250 ksps

—

1.8

3.8

QFN40

6x6

±2%

SiM3L136-C-GM

(EOL) Buy Dev Kit

12-bit, 23-ch., 250 ksps

—

1.8

3.8

QFN64

9x9

±2%

ETM; SW

SiM3L136-C-GQ

(EOL) Buy Dev Kit

12-bit, 23-ch., 250 ksps

—

1.8

3.8

TQFP64

10x10

±2%

ETM; SW

SiM3L144-C-GM

(EOL) Buy Dev Kit

12-bit, 20-ch., 250 ksps

—

1.8

3.8

QFN40

6x6

±2%

SiM3L146-C-GM

(EOL) Buy Dev Kit

12-bit, 23-ch., 250 ksps

—

1.8

3.8

QFN64

9x9

±2%

ETM; SW

SiM3L146-C-GQ

(EOL) Buy Dev Kit

12-bit, 23-ch., 250 ksps

—

1.8

3.8

TQFP64

10x10

±2%

ETM; SW

SiM3L154-C-GM

(EOL) Buy Dev Kit

128

12-bit, 20-ch., 250 ksps

—

1.8

3.8

QFN40

6x6

±2%

SiM3L156-C-GM

(EOL) Buy Dev Kit

128

12-bit, 23-ch., 250 ksps

—

1.8

3.8

QFN64

9x9

±2%

ETM; SW

SiM3L156-C-GQ

(EOL) Buy Dev Kit

128

12-bit, 23-ch., 250 ksps

—

1.8

3.8

TQFP64

10x10

±2%

ETM; SW

SiM3L157-C-GQ

(EOL) Buy Dev Kit

128

12-bit, 24-ch., 250 ksps

—

1.8

3.8

TQFP80

12x12

±2%

ETM; JTAG; SW

SiM3L164-C-GM

(NRND) Buy Dev Kit

256

12-bit, 20-ch., 250 ksps

—

1.8

3.8

QFN40

6x6

±2%

SiM3L166-C-GM

(EOL) Buy Dev Kit

256

12-bit, 23-ch., 250 ksps

—

1.8

3.8

QFN64

9x9

±2%

ETM; SW

SiM3L166-C-GQ

(EOL) Buy Dev Kit

256

12-bit, 23-ch., 250 ksps

—

1.8

3.8

TQFP64

10x10

±2%

ETM; SW

SiM3L167-C-GQ

(NRND) Buy Dev Kit

256

12-bit, 24-ch., 250 ksps

—

1.8

3.8

TQFP80

12x12

±2%

ETM; JTAG; SW

Part Number	MHz	Flash	RAM	Dig I/O Pins	ADC 1	DAC	Timers (16-bit)	UART	USART	SPI	I2C	Comparators	Vdd (min)	Vdd (max)	Package Type	Package Size (mm)	Internal Osc.	Debug Interface
SiM3L134-C-GM (EOL) Buy Dev Kit	50	32	8	28	12-bit, 20-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	QFN40	6x6	±2%	SW
SiM3L136-C-GM (EOL) Buy Dev Kit	50	32	8	51	12-bit, 23-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	QFN64	9x9	±2%	ETM; SW
SiM3L136-C-GQ (EOL) Buy Dev Kit	50	32	8	51	12-bit, 23-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	TQFP64	10x10	±2%	ETM; SW
SiM3L144-C-GM (EOL) Buy Dev Kit	50	64	16	28	12-bit, 20-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	QFN40	6x6	±2%	SW
SiM3L146-C-GM (EOL) Buy Dev Kit	50	64	16	51	12-bit, 23-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	QFN64	9x9	±2%	ETM; SW
SiM3L146-C-GQ (EOL) Buy Dev Kit	50	64	16	51	12-bit, 23-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	TQFP64	10x10	±2%	ETM; SW
SiM3L154-C-GM (EOL) Buy Dev Kit	50	128	32	28	12-bit, 20-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	QFN40	6x6	±2%	SW
SiM3L156-C-GM (EOL) Buy Dev Kit	50	128	32	51	12-bit, 23-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	QFN64	9x9	±2%	ETM; SW
SiM3L156-C-GQ (EOL) Buy Dev Kit	50	128	32	51	12-bit, 23-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	TQFP64	10x10	±2%	ETM; SW
SiM3L157-C-GQ (EOL) Buy Dev Kit	50	128	32	62	12-bit, 24-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	TQFP80	12x12	±2%	ETM; JTAG; SW
SiM3L164-C-GM (NRND) Buy Dev Kit	50	256	32	28	12-bit, 20-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	QFN40	6x6	±2%	SW
SiM3L166-C-GM (EOL) Buy Dev Kit	50	256	32	51	12-bit, 23-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	QFN64	9x9	±2%	ETM; SW
SiM3L166-C-GQ (EOL) Buy Dev Kit	50	256	32	51	12-bit, 23-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	TQFP64	10x10	±2%	ETM; SW
SiM3L167-C-GQ (NRND) Buy Dev Kit	50	256	32	62	12-bit, 24-ch., 250 ksps	—	3	2	1	2	1	2	1.8	3.8	TQFP80	12x12	±2%	ETM; JTAG; SW
