Advancing the IoT
Silicon Labs’ Wireless Gecko Series 2 platform is designed to make IoT products more powerful, efficient and reliable. The first wave of Series 2 devices are small form-factor SoCs with a dedicated security core and serve line-powered IoT applications including connected lighting, hubs and gateways, metering, and smart speakers.
Wireless Gecko Series 2
Build Next-Generation Connected Products Now
Series 2 Enhanced Security
- Dedicated Hardware Core
- Faster, more energy efficient hardware encryption
- A TRNG that is compliant with NIST SP 800-90A/B/C and AIS-31
- Secure Debug control helps prevent unauthorized access to end products
- Secure Boot
- Ensures authentic firmware and OTA updates
Simplifying Wireless Designs with a Highly Integrated SoCs
- Best-in-class RF with +20 dBm output power and up to +124.5 dB link budget
- Powerful processing with an 80 MHz Arm® Cortex®-M33 core with TrustZone technology

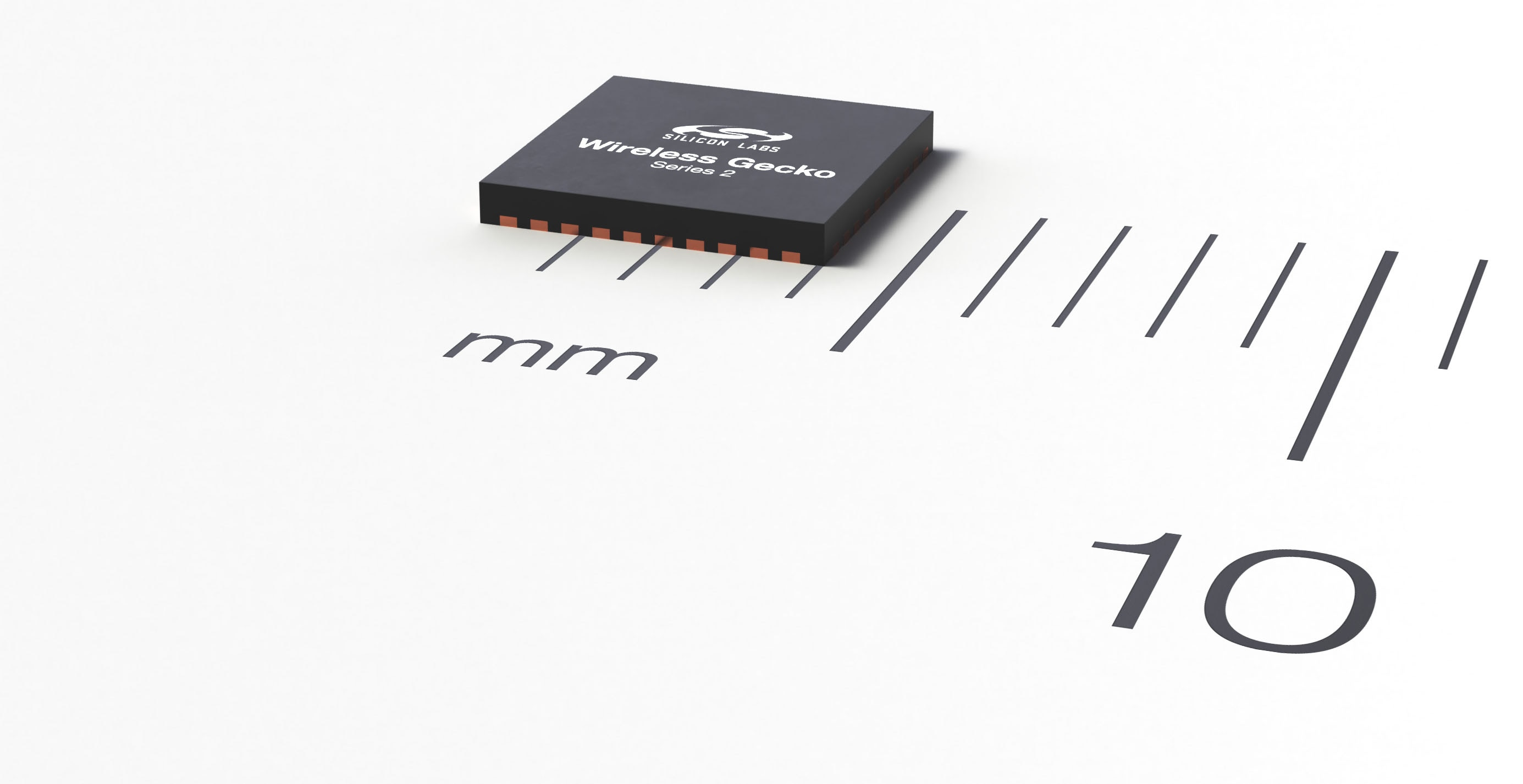

- Industry’s smallest multiprotocol SoCs in a 4 mm x 4 mm QFN package
- Lower BOM count with fewer matching components and no need for external inductors or power amplifiers
One Kit to Rule Them All
Use the universal wireless starter kit and interchangeable radio boards with both EFR32MG21 Series 2 and EFR32BG21 Series 2.
The Linley Group Microprocessor Report: Silicon Labs Upgrades Wireless MCUs
The Linley Group determined Silicon Labs' EFR32 Series 2 chips improve performance and IoT security
EFR32BG21 Series 2 Product Matrix for Bluetooth
Devices
| Part Number | Data Sheet | Kit | MCU | Core Frequency (MHz) | Flash | RAM | Cryptography | Output Power Range (dBm) | Receive Sensitivity | GPIO | RX Current (mA) | TX Current (mA @ 0 dBm) | UART | USART | LEUART | I²C | SPI | I²S | ADC | Comparators | DAC | Timers (16-bit) | Temperature Range ºC | Package Type | Package Size | Bluetooth 5.1 | Bluetooth Mesh |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLWSTK6023A EFR32xG21 Bluetooth Starter Kit | ARM Cortex-M33 | 80 | 1024 | 96 | AES-256 ECC SHA-1 SHA-2 | -20 10 | -97 (1 Mbit/s GFSK) | 20 | 8.7 | 0 | 3 | 3 | 0 | 2 | 3 | 3 | 12-bit, SAR, 1 Msps | 2 | — | 7 | -40 125 | QFN32 | 4x4 | Yes | Yes | |
|
|
SLWSTK6023A EFR32xG21 Bluetooth Starter Kit | ARM Cortex-M33 | 80 | 512 | 64 | AES-256 ECC SHA-1 SHA-2 | -20 10 | -97 (1 Mbit/s GFSK) | 20 | 8.7 | 0 | 3 | 3 | 0 | 2 | 3 | 3 | 12-bit, SAR, 1 Msps | 2 | — | 7 | -40 125 | QFN32 | 4x4 | Yes | Yes | |
|
|
SLWSTK6023A EFR32xG21 Bluetooth Starter Kit | ARM Cortex-M33 | 80 | 768 | 64 | AES-256 ECC SHA-1 SHA-2 | -20 10 | -97 (1 Mbit/s GFSK) | 20 | 8.7 | 0 | 3 | 3 | 0 | 2 | 3 | 3 | 12-bit, SAR, 1 Msps | 2 | — | 7 | -40 125 | QFN32 | 4x4 | Yes | Yes | |
|
|
SLWSTK6023A EFR32xG21 Bluetooth Starter Kit | ARM Cortex-M33 | 80 | 1024 | 96 | AES-256 ECC SHA-1 SHA-2 | -20 20 | -97 (1 Mbit/s GFSK) | 20 | 8.7 | 0 | 3 | 3 | 0 | 2 | 3 | 2 | 12-bit, SAR, 1 Msps | 2 | — | 7 | -40 125 | QFN32 | 4x4 | Yes | Yes | |
|
|
SLWSTK6023A EFR32xG21 Bluetooth Starter Kit | ARM Cortex-M33 | 80 | 512 | 64 | AES-256 ECC SHA-1 SHA-2 | -20 20 | -97 (1 Mbit/s GFSK) | 20 | 8.7 | 0 | 3 | 3 | 0 | 2 | 3 | 3 | 12-bit, SAR, 1 Msps | 2 | — | 7 | -40 125 | QFN32 | 4x4 | Yes | Yes | |
|
|
SLWSTK6023A EFR32xG21 Bluetooth Starter Kit | ARM Cortex-M33 | 80 | 768 | 64 | AES-256 ECC SHA-1 SHA-2 | -20 20 | -97 (1 Mbit/s GFSK) | 20 | 8.7 | 0 | 3 | 3 | 0 | 2 | 3 | 3 | 12-bit, SAR, 1 Msps | 2 | — | 7 | -40 125 | QFN32 | 4x4 | Yes | Yes |
EFR32MG21 Series 2 Product Matrix for Zigbee, Thread, and Multiprotocol
Devices
| Part Number | Data Sheet | Kit | MCU | Core Frequency (MHz) | Flash | RAM | Cryptography | Output Power Range (dBm) | Receive Sensitivity | GPIO | RX Current (mA) | TX Current (mA @ 0 dBm) | UART | USART | LEUART | I²C | SPI | I²S | ADC | Comparators | DAC | Timers (16-bit) | Temperature Range ºC | Package Type | Package Size | Wireless Standards | Multiprotocol |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SLWSTK6023A EFR32xG21 Bluetooth Starter Kit | ARM Cortex-M33 | 80 | 1024 | 96 | AES-256 ECC SHA-1 SHA-2 | -20 10 | -104 (250 kbps O-QPSK DSSS) | 20 | 9.4 | 0 | 3 | 3 | 0 | 2 | 3 | 3 | 12-bit, SAR, 1 Msps | 2 | — | 7 | -40 125 | QFN32 | 4x4 | Bluetooth Thread Zigbee | Dynamic Switched Programmable | |
|
|
SLWSTK6023A EFR32xG21 Bluetooth Starter Kit | ARM Cortex-M33 | 80 | 512 | 64 | AES-256 ECC SHA-1 SHA-2 | -20 10 | -104 (250 kbps O-QPSK DSSS) | 20 | 9.4 | 0 | 3 | 3 | 0 | 2 | 3 | 3 | 12-bit, SAR, 1 Msps | 2 | — | 7 | -40 125 | QFN32 | 4x4 | Bluetooth Thread Zigbee | Dynamic Switched Programmable | |
|
|
SLWSTK6023A EFR32xG21 Bluetooth Starter Kit | ARM Cortex-M33 | 80 | 768 | 64 | AES-256 ECC SHA-1 SHA-2 | -20 10 | -104 (250 kbps O-QPSK DSSS) | 20 | 9.4 | 0 | 3 | 3 | 0 | 2 | 3 | 3 | 12-bit, SAR, 1 Msps | 2 | — | 7 | -40 125 | QFN32 | 4x4 | Bluetooth Thread Zigbee | Dynamic Switched Programmable | |
|
|
SLWSTK6023A EFR32xG21 Bluetooth Starter Kit | ARM Cortex-M33 | 80 | 1024 | 96 | AES-256 ECC SHA-1 SHA-2 | -20 20 | -104 (250 kbps O-QPSK DSSS) | 20 | 9.4 | 0 | 3 | 3 | 0 | 2 | 3 | 3 | 12-bit, SAR, 1 Msps | 2 | — | 7 | -40 125 | QFN32 | 4x4 | Bluetooth Thread Zigbee | Dynamic Switched Programmable | |
|
|
SLWSTK6023A EFR32xG21 Bluetooth Starter Kit | ARM Cortex-M33 | 80 | 512 | 64 | AES-256 ECC SHA-1 SHA-2 | -20 20 | -104 (250 kbps O-QPSK DSSS) | 20 | 9.4 | 0 | 3 | 3 | 0 | 2 | 3 | 3 | 12-bit, SAR, 1 Msps | 2 | — | 7 | -40 125 | QFN32 | 4x4 | Bluetooth Thread Zigbee | Dynamic Switched Programmable | |
|
|
SLWSTK6023A EFR32xG21 Bluetooth Starter Kit | ARM Cortex-M33 | 80 | 768 | 64 | AES-256 ECC SHA-1 SHA-2 | -20 20 | -104 (250 kbps O-QPSK DSSS) | 20 | 9.4 | 0 | 3 | 3 | 0 | 2 | 3 | 3 | 12-bit, SAR, 1 Msps | 2 | — | 7 | -40 125 | QFN32 | 4x4 | Bluetooth Thread Zigbee | Dynamic Switched Programmable |
The Silicon Labs Advantage
Expertise
20+ years providing RF solutions with more than 1 billion deployed wireless nodes worldwide
Security
Providing enhanced security features that help developers increase consumer trust in connected products
Platform
Simplifying IoT product design with highly-integrated devices, reusable software and advanced development tools
